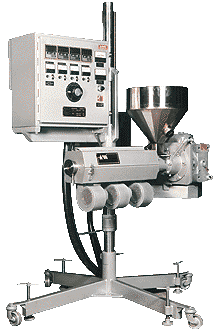

Deltaplast Swing Line Series

Co-Extruders


Fully adjustable Co-Extruders in both the vertical and horizontal positions. Allowing for various co-extrusion die entry points and heights. Custom designed base configurations available for optimum access to your production line application. Engineered and manufactured for top performance and durability utilizing precision manufactured long life components to add reliability and productivity to your operation. Size ranges from 3/4" to 2". Various L/D ratios, as well as related processing equipment. Rugged equipment built without compromise for long term productivity and performance.

  KEY FEATURES

  IDEAL FOR FOLLOWING INDUSTRIES:

  • Vertical
  • Horizontal
  • Independent or column Mounted Panel
  • Automatic Air Cooling
  • Caster Mounted
  • Versatile
  • Space efficient
  • Profile
  • Pipe
  • Blowmolding
  • Wire and Cable
  • Sheet





Extruder Drive Gear Reducer Thrust Assembly Feed Throat

Digital DC, AC vector or brushless DC drive systems available for all polymer applications. Connected to gear reducer via fully guarded matched belts and sheaves allowing interchangeability to meet different torque and speed requirements.


Single reduction worm gear reducer with generous mechanical and thermal ratings. Self contained splash type oil bath.

Heavy duty cylindrical roller type bearings mounted in a separate thrust housing with its own oil bath which does not allow any cross contamination with the gear reducer.

High density class 40 iron casting jacketed for water cooling. Large rectangular feed hole with extended bimetallic barrel liner. A high capacity hopper complete with sight glass and dump chute is included.

Barrel Heating & Cooling

Barrel

Base

Screw

Processing control achieved via maxiband aluminum heating elements, each zone individually shrouded to guide cooling air directly over barrel elements. Cooling air provided by externally mounted blowers.

Centrifical cast bimetallic lined barrel, base material 4140 or JP38 Tube steel, precision machined taper grip flanges threaded and welded for added strength. Designed for maximum operating pressures of 10,000 PSI. Optionally available superior corrosion, wear resistant linings.

Heavy duty post mounted base plate with vertical and horizontal adjustment capability via ratchet adjustment mechanism giving full range of motion. Four leg caster mounting with position locking screws. Configurable in right to left or left to right positions. Other base foot configurations available.

Single stage metering type, base material pre hardened 4140, chrome plated, colmonoy hardened flights.

Special performance designs engineered to suit individual applications for superior outputs and melt quality available. Including barrier type and special mixing sections.


Clamp Control Cabinet

Two piece taper grip clamp with single swing bolt fastening capability provides positive seal and alignment between barrel and adaptor flange. Co extrusion adaptor with heater band and feed tube included.

Post or remote caster mounted control panel containing microprocessor based temperature controllers, circuit breakers, ammeters, load contactors, and control transformer for each barrel and die zone. The drive operator keypad station contains the following; speed regulation, start/stop, screw speed indicator, load indicator as well as other drive data and fault indicators. Power requirements 230/3/60 standard, 460/3/60 or 575/3/60 available.



TECHNICAL DRAWINGS



SIZE
RATIO
APPROX
WEIGHT
A
B
C
C/L
3/4 in
20 mm
24:1
800 lbs.
365 kg.
88 in
2235 mm
33 in
840 mm
30 in
765 mm
40-72 in
1015-1830 mm
1 in
25 mm
24:1
900 lbs.
410 kg.
88 in
2235 mm
39 in
990 mm
30 in
765 mm
40-72 in
1015-1830 mm
1-1/4 in
30 mm
24:1
1250 lbs.
570 kg.
88 in
2235 mm
53 in
1345 mm
34 in
865 mm
40-72 in
1015-1830 mm
1-1/2 in
40 mm
24:1
1575 lbs.
715 kg.
94 in
2235 mm
59 in
1500 mm
34 in
865 mm
40-72 in
1015-1830 mm
1-3/4 in
45 mm
24:1
1790 lbs.
815 kg.
110 in
2795 mm
71 in
1805 mm
60 in
1525 mm
36-56 in
915-1425 mm
2 in
50 mm
24:1
2200 lbs.
1000 kg.
115 in
2025 mm
77 in
1955 mm
60 in
1525 mm
36-56 in
915-1425 mm


SIZE
L/D RATIO
STD. DRIVE
HP
REDUCTION
RATIO
AGMA HP
RATING
THRUST BEARING
AVG. B10
LIFE HOURS
# OF ZONES
TOTAL KW
CFM
3/4 in
20 mm
24:1
3
15:1
5.72
210,000
2
2.5
75
1 in
25 mm
24:1
3
15:1
5.72
210,000
2
2.5
75
1-1/4 in
30 mm
24:1
5
15:1
13.9
190,000
3
6.5
130
1-1/2 in
40 mm
30:1
7.5
15:1
13.9
150,000
3
7.5
240
1-3/4 in
45 mm
24:1
10
15:1
23.1
150,000
3
10.8
240
2 in
50 mm
30:1
15
15:1
44.4
725,000
3
12.5
400






(adobe PDF format)
